Heavy Payload Robots

At between 150 and 700 kg, the M-900 6 axis robot series offers one of the highest payloads on the market. The M-900 series is ideal for almost every application that calls for single or multiple heavy parts with reaches extending to 3.7 m. Varied mounting options make this series very versatile and enable it to make maximum use of the work envelope.

Request A Quote

M-900 Robot Series

M-900iB/280

Axes: 6

Payload 280 kg

Reach 2655 mm

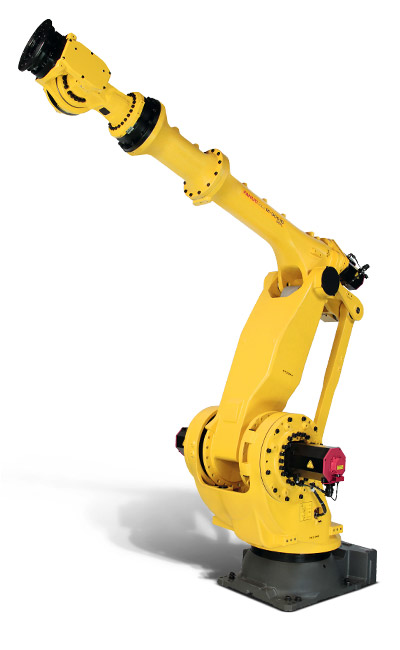

M-900iB/280L

Axes: 6

Payload 280 kg

Reach 3103 mm

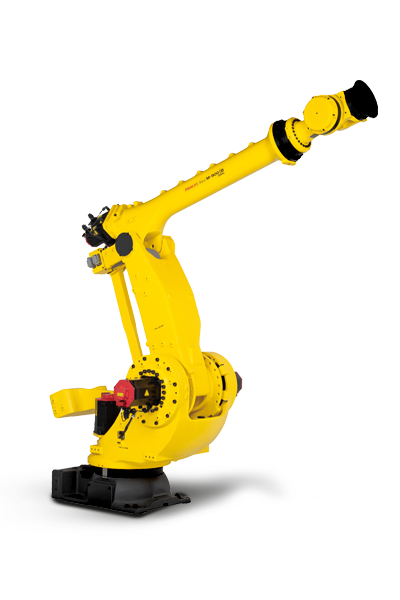

FANUC M-900iB330L Robot — M-900iB/330L

Axes: 6

Payload 330 kg

Reach 3203 mm

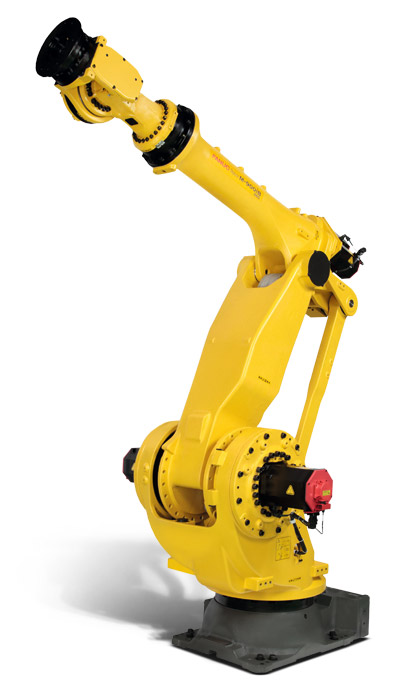

M-900iB/360

Axes: 6

Payload 360 kg

Reach 2655 mm

M-900iB/360E

Axes: 6

Payload 360 kg

Reach 2655 mm

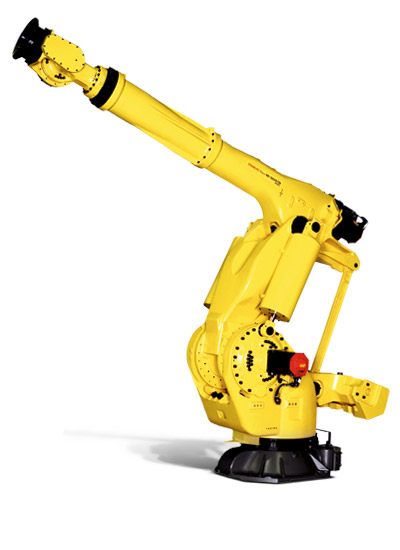

M-900iB-400L — M-900iB/400L

Axes: 6

Payload 400 kg

Reach 3704 mm

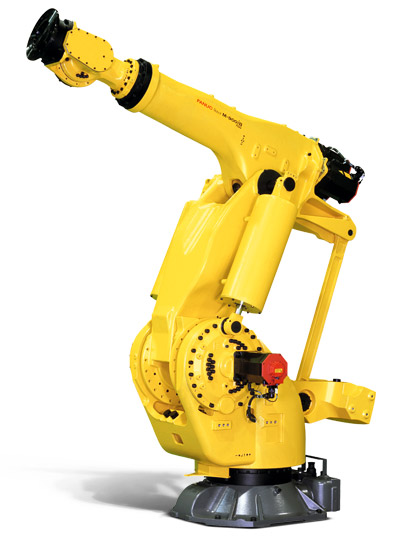

M-900iB-700 — M-900iB/700

Axes: 6

Payload 700 kg

Reach 2832 mm

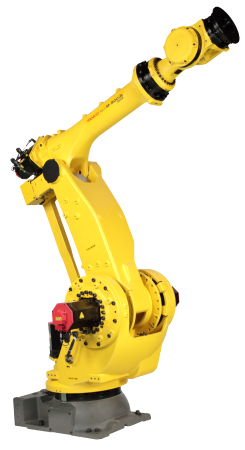

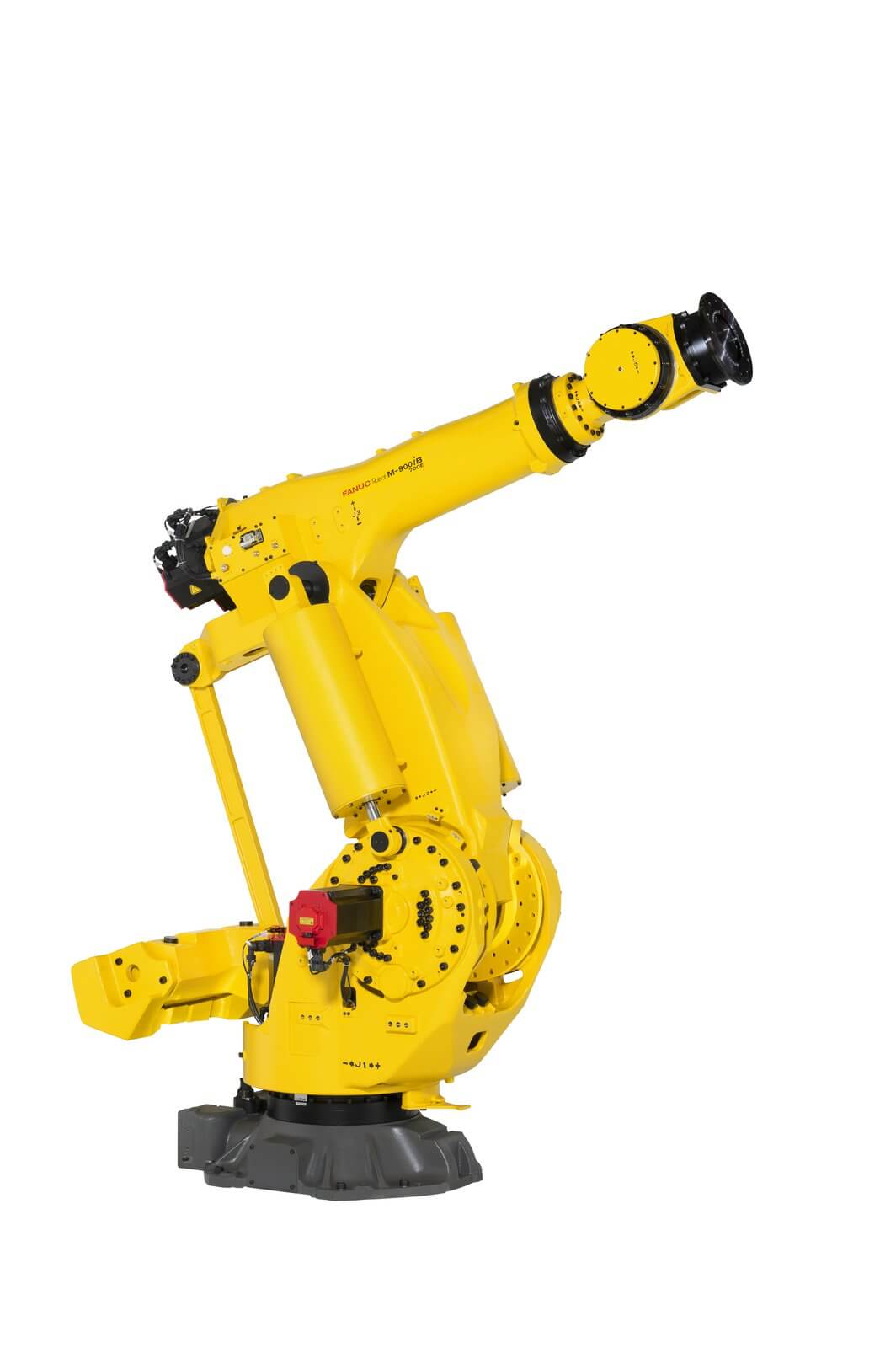

Enhanced Wrist Capacity

FANUC’s new M-900iB/700E offers the same great attributes as the M-900iB/700, with one big enhancement – more wrist load capacity. The improved wrist can manipulate products more efficiently, offering more flexibility to handle large and heavy parts such as EV batteries.

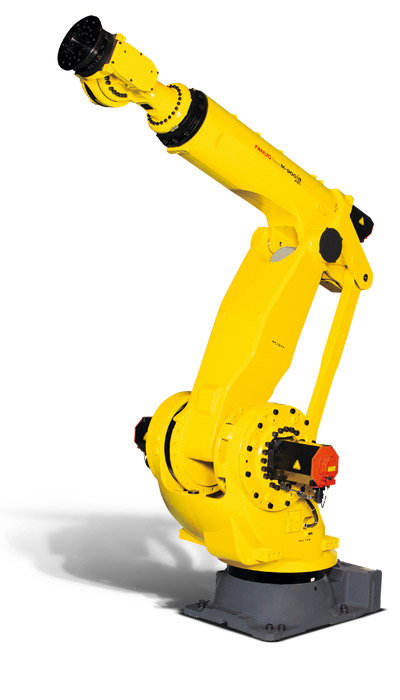

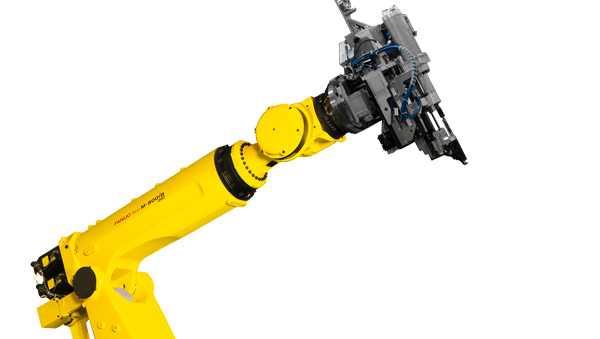

M-900iB/280

Introducing the High Rigidity Robot

The M-900iB/280 is FANUC’s new specialist for applications that demand maximum rigidity from the robot. Designed for processes that put a lot of pressure on the tool, this new stiffness specialist delivers improved accuracy on applications where precision is essential. See what higher rigidity can do for you.

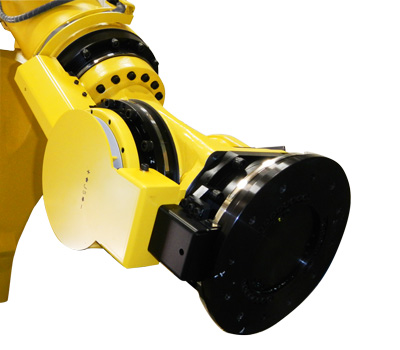

Reliable, Long Life Design

Featuring J4 rotation at the wrist and a slim J3 arm for easy access into narrow spaces, M-900 models are equipped with hollow drive shafts for wrist motors and equipment mounting flanges on the arm. A reducer at the end of J4 keeps the whole J3 arm stationary and axis 4 rotates at the end of the arm. The durability and reliability of these robots is proven on a daily basis in high volume environments such as the automotive industry.

FANUC M-900 SERIES ROBOT HIGHLIGHTS

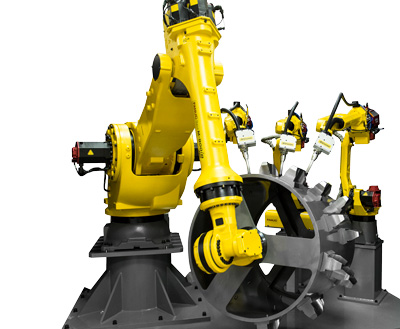

Large grippers and heavy payloads

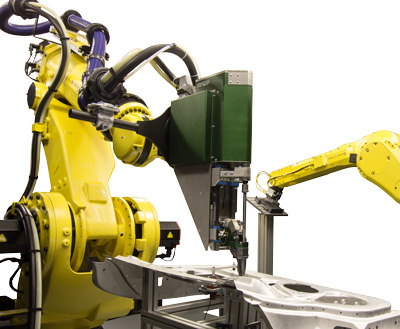

The M-900's rigid construction along with its supporting parallel link arm, ensures accurate handling of heavy workpieces, fast palletizing and precise heavy-duty drilling. The M-900 series delivers higher throughput thanks to improved carrying capability, wrist moments and inertia.

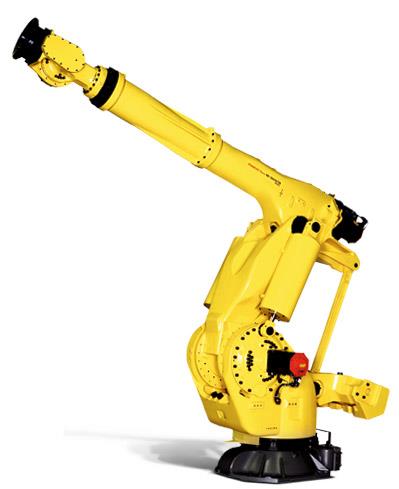

Extra long reach versions available

Handle large and very heavy parts at reaches of up to 3704mm using the M-900iB/280L and the M-900iB/400L models.

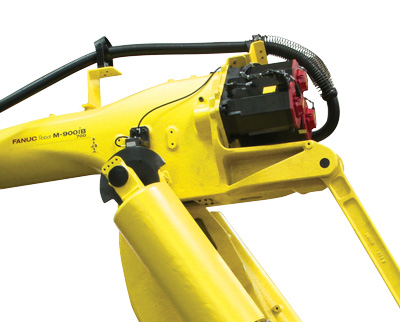

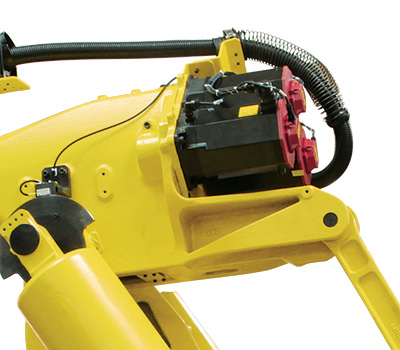

Compact motor-protected wrist

Wrist motors are mounted on the shoulder of the M-900 Series to protect them from heat and harsh operating conditions. Improved cooling in this position enables higher loads and faster cycles.

Integrated services

Integrated pneumatical and electrical services consisting of 8 inputs and 8 outputs as standard. Simple and reliable cable dressout package available.
